The modern spiral staircases from the Cast Stairs Exclusive collection can change the face of our home.

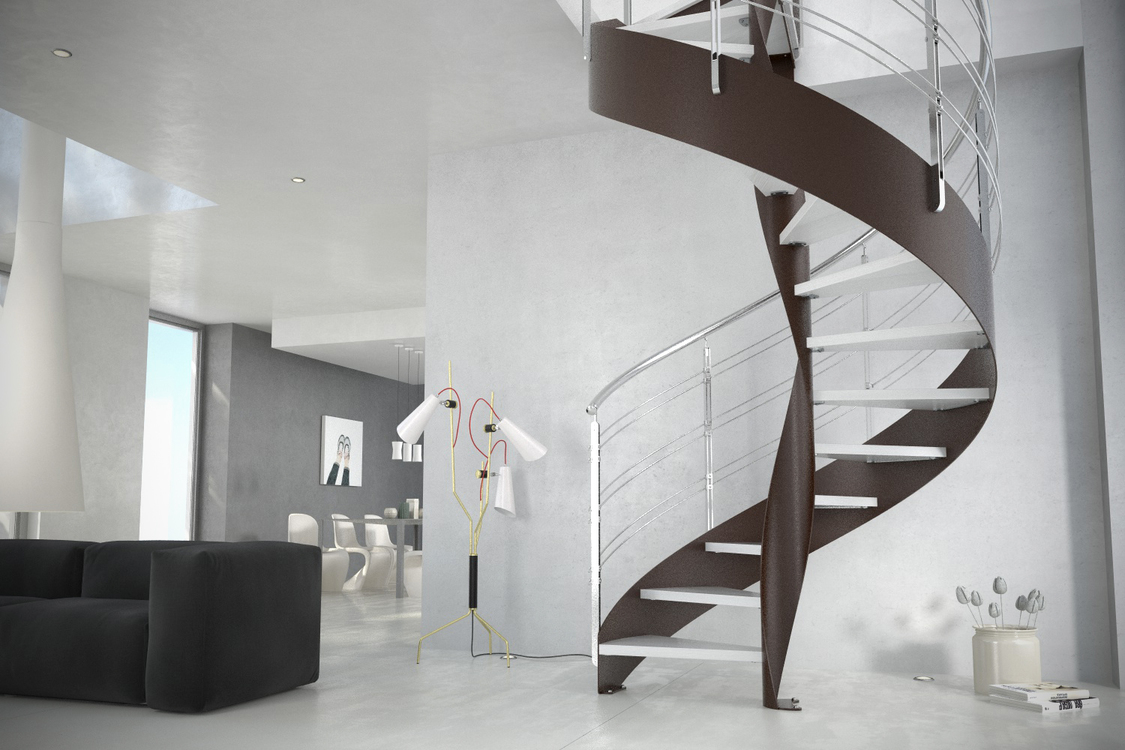

The Wave model is a valuable staircase due to its refined and modern finishes.
The staircase has a central structure made with a twisted iron pole and welded brackets to support the step. The external band is made of custom calendered iron and supplied with welded step support brackets.
Both structures have no visible screws.
The Wave staircase lends itself to serving public and private environments thanks to the vast range of diameters available.
The wide finishes available, both of the wood and of the painted parts, can offer an excellent result for any situation of style, modern, vintage, elegant, classic.
The sales offices will make all their experience available to advise the customer on the best design solution.
The Jazz Iron railing in its painted version is laterally fixed to the external band of the staircase. The modularity of the rods allows the protective barrier to be created according to the customer’s tastes and can be modified at any time.
The self-supporting staircase is fixed to the floor at the start and to the slab at the finish.
Data sheet
- Spiral staircase with central helical post
- External band in iron with welded brackets without visible screws
- 40 mm thick wooden step
- Railing model Jazz Iron in painted iron
- Railing post made up of plates measuring 30×5 mm
- Rods ø 8 mm in quantities of n. 3 to 9
- Tubular handrail ø 42 mm in painted iron
- Wood colors: natural, oak, cherry, walnut, bleached, wengé, platinum grey, graphite black, sand, cream, slate, silver, earth, ecru, jute
- Embossed iron colours: embossed white, embossed black, embossed light grey, embossed dark grey, embossed dark brown, embossed corten steel, embossed beige
- Water-based painting of the wooden steps, with a smooth or brushed finish
- Available from a nominal diameter of 1,300 mm up to 2,600 mm
- Wave Iron version available with iron step and a maximum diameter of 1,700 mm
