The modern stainless steel stairs from the Cast Stairs Excellence collection are stairs that furnish with style.

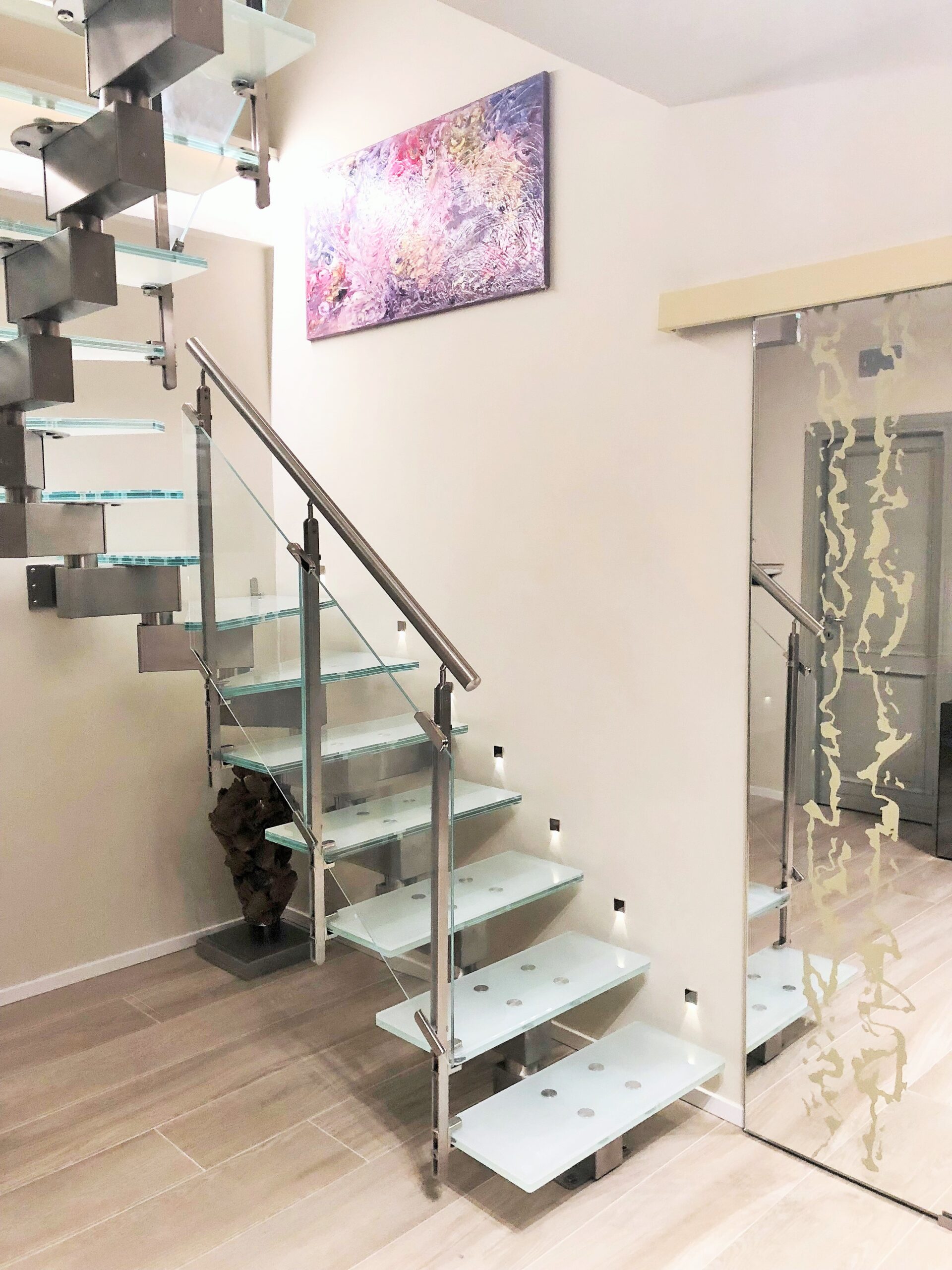

Tekna Light View is a modular, robust, modern and elegant staircase suitable for multiple situations.
The staircase has support elements in Aisi 304 stainless steel and adjustable risers.
The steps in tempered and stratified glass with a thickness of 8+10+8 mm are fixed to the structure by a special welded plate.
Tekna Light View is suitable for private environments and stands out from all the other models for the lightness and transparency that the combination of stainless steel combined with glass gives to the staircase.
The View railing is fixed externally to the step and is made up of Jazz columns in stainless steel and 4+4 mm glass panels.
The standard handrail is in tubular stainless steel ø 42 mm.
The staircase needs to be fixed to the floor at the start and to the slab at the point of arrival; depending on the shape of the ladder, one or more intermediate fixings are required to give greater rigidity.
Data sheet
- Modular staircase for interiors
- Modules in Aisi 304 stainless steel in standard pitches 220 – 240 – 260 mm
- Step in tempered and stratified glass with a thickness of 8+10+8 mm
- Standard glass colours: transparent cod. 400 and extra-clear cod. 401
- View model railing
- Double plate Jazz column of dimensions 30×5 mm
- Railing panels in 4+4 mm tempered laminated glass
- Tubular handrail ø 42 mm in stainless steel
- Width that can be produced as standard from 600 mm up to 1,000 mm
Category: Indoor modular stairs
Attributes: glass railing, open staircase, stainless steel and glass staircase, modern staircase, modular staircase, indoor staircase
